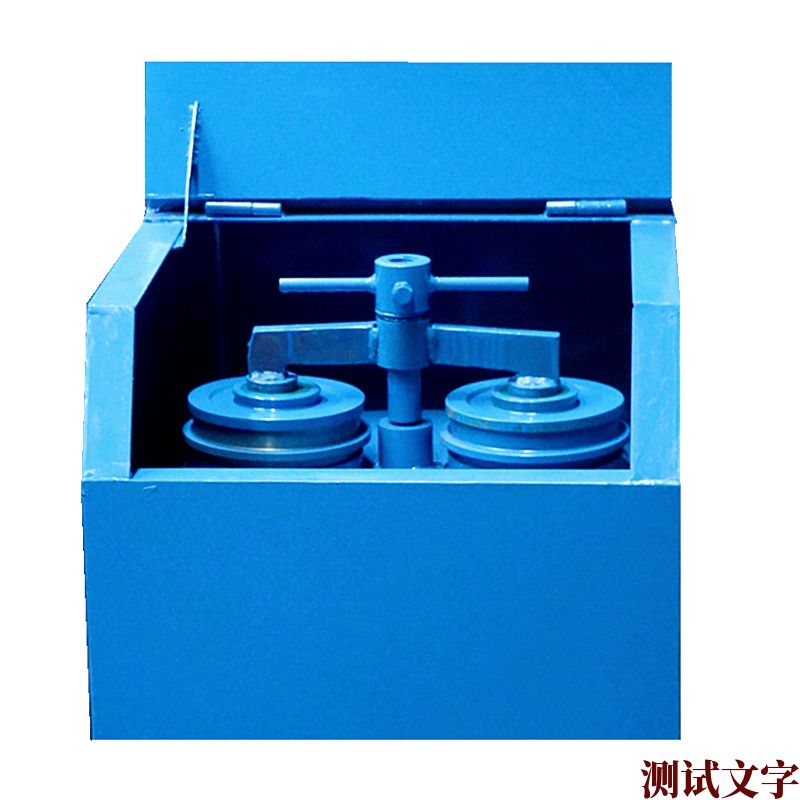

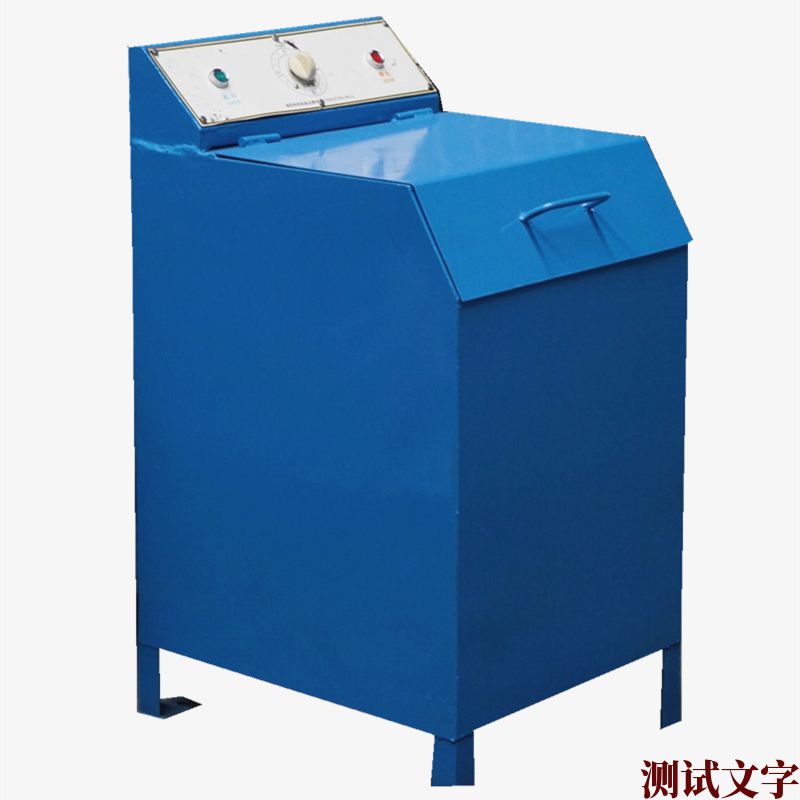

綠洲實驗密封式製樣機出口Lab Sealed Sample-Making Shredder
該機采用“壓緊料體防鬆動裝置”輕便可靠,全密封式,無粉塵外溢,無需排風除塵,高頻震動研磨,粉碎效率高,粒度均勻,不混樣,可一次性同時磨1到7個礦樣,產品體積小,...
該機采用“壓緊料體防鬆動裝置”輕便可靠,全密封式,無粉塵外溢,無需排風除塵,高頻震動研磨,粉碎效率高,粒度均勻,不混樣,可一次性同時磨1到7個礦樣,產品體積小,結構緊湊,不用安裝,噪音小
Advantage:
1.It do not have dust spillover,it requires no air-exhausting and dusting system,
2.It features high frequency vibration grinding,high efficiency of grinding with uniform particle size.
3.no blending of samples and can grind 1 to 7 pieces for sample with the same time
4.The product is small in volume and compact in structure without need of installation as well as lower noise,It can be operational at any place
技術參數/Specification | ||||||
實驗密封製樣機Lab Sealed Sample-Making Shredder | ||||||
振動磨礦機Vibration Grinder | ||||||
型號 | 裝料重量capacity | 給料粒度Feeder size(mm) | 排料粒度Output size(mm) | 粉碎時間Grinding time(min) | 功率 | 重量Weight |
Model | (g) | Power | (kg) | |||
(kw) | ||||||
LZGJ100 | 100 X 1個pcs | 13 | 0.074 | 2-3 | 1.1 | 139 |
LZGJ100/2 | 100 X 2個pcs | 13 | 0.074 | 2-3 | 1.1 | 170 |
LZGJ100/3 | 100 X 3個pcs | 13 | 0.074 | 2-3 | 1.5 | 180 |
LZGJ100/4 | 100 X 4個pcs | 13 | 0.074 | 2-3 | 1.5 | 200 |
LZGJ100/5 | 100 X 5個pcs | 13 | 0.074 | 2-3 | 1.5 | 200 |
LZGJ100/7 | 100 X 7個pcs | 13 | 0.074 | 2-3 | 1.5 | 200 |
LZGJ200 | 200 X 1個pcs | 20 | 0.074 | 3-5 | 1.5 | 160 |
LZGJ200/2 | 200 X 2個pcs | 20 | 0.074 | 3-5 | 1.5 | 260 |
LZGJ300/2 | 300 X 2個pcs | 20 | 0.074 | 3-5 | 1.5 | 280 |
LZGJ300/3 | 300 X 3個pcs | 20 | 0.074 | 3-5 | 1.5 | 290 |
LZGJ400 | 400 X 1個pcs | 26 | 0.074 | 3-5 | 1.5 | 200 |
LZGJ400/2 | 400 X 2個pcs | 26 | 0.074 | 3-5 | 1.5 | 210 |
LZGJ400/3 | 400 X 3個pcs | 26 | 0.074 | 3-5 | 1.5 | 310 |
LZGJ400/4 | 400 X 4個pcs | 26 | 0.074 | 3-5 | 1.5 | 330 |
LZGJ500 | 500 X 1個pcs | 30 | 0.074 | 3-5 | 1.5 | 360 |
LZGJ1000 | 1000 X 1個pcs | 30 | 0.074 | 3-5 | 1.5 | 390 |
