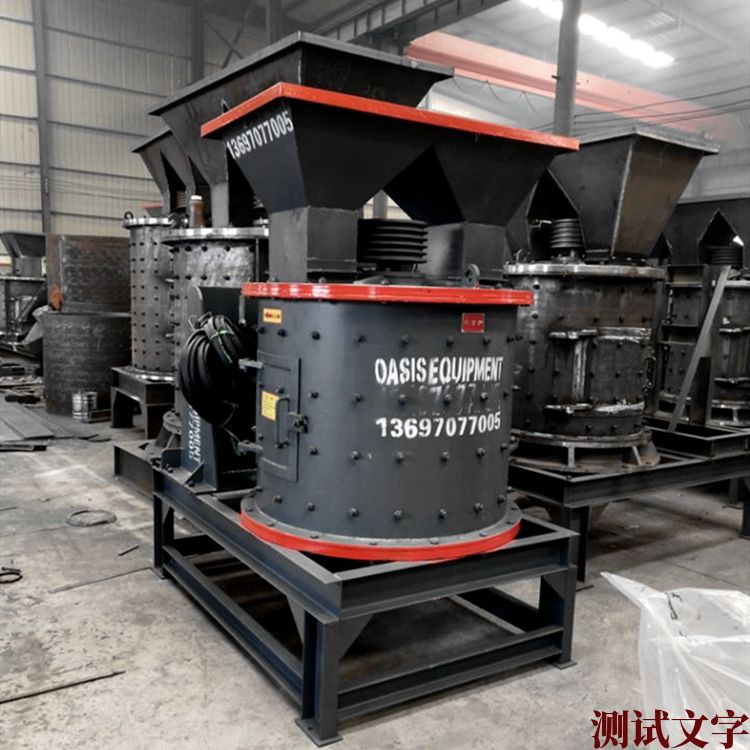

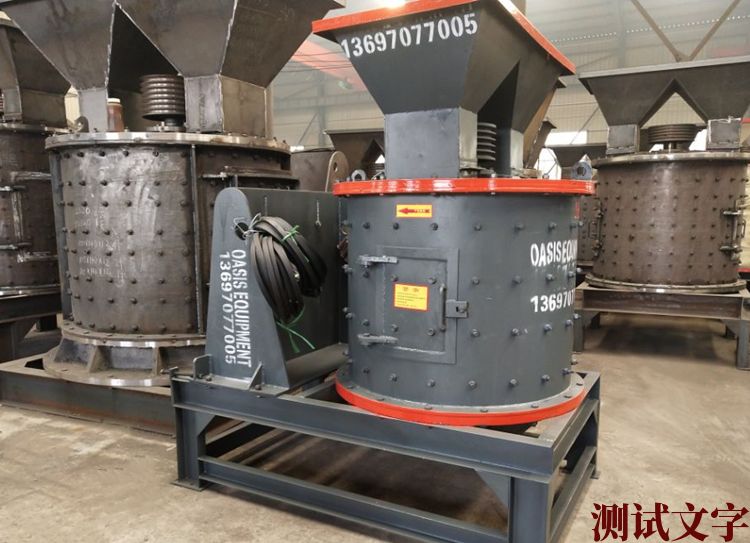

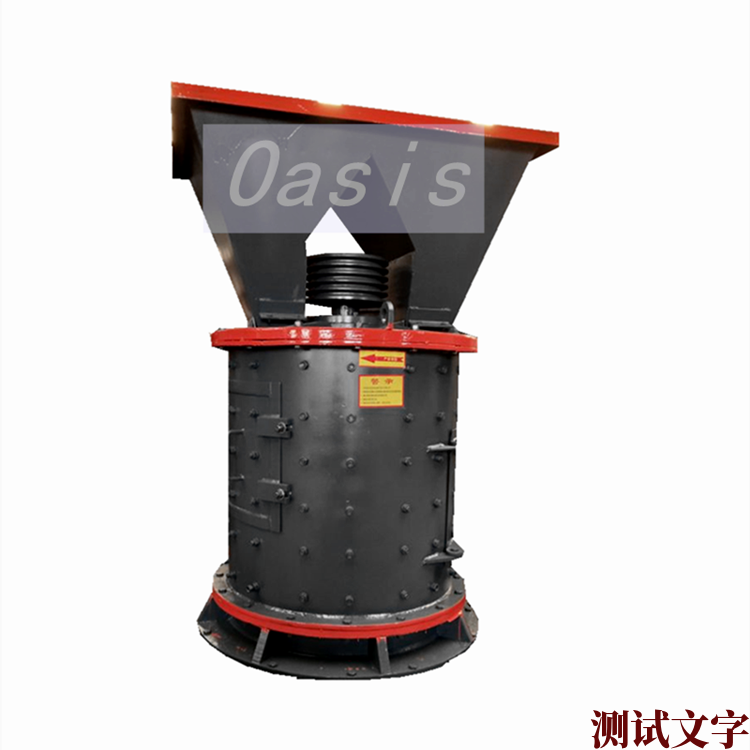

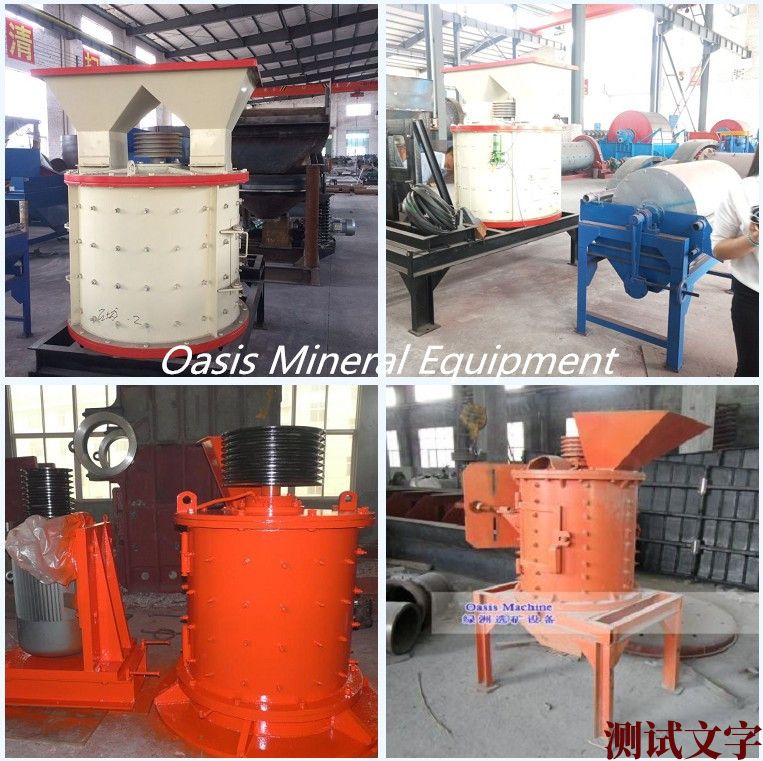

PFL係列立式複合破碎機
Specification of Oasis Mineral EquipmentVertical Combination Crusher立式複合破碎機Model...
 Specification of Oasis Mineral Equipment | ||||||||
| Vertical Combination Crusher立式複合破碎機 | ||||||||
| Model | Cylinder diameter(mm) | Feeder size(mm) | Output size | Capacity (t/h) | Rotation speed(r/m) | Power (kw) | Dimensions (mm) | Weight(t) |
| LZPL600 | 600 | <50 | <2-5 mm 60-90% | 5-10 | 1200 | 7.5 | 1800X1000X1200 | 1.2 |
| LZPL700 | 700 | <80 | <2-5 mm 60-90% | 8-12 | 1100 | 15 | 1950X1000X1300 | 1.4 |
| LZPL800 | 800 | <100 | <2-5 mm 60-90% | 10-25 | 934 | 22 | 2100X1200X1700 | 1.6 |
| LZPL1000 | 1000 | <120 | <2-5 mm 60-90% | 25-40 | 769 | 45 | 2600X1400X1900 | 3.1 |
| LZPL1250 | 1250 | <150 | <2-5 mm 60-90% | 45-70 | 530 | 75 | 2800X1600X2100 | 4.6 |
| LZPL1500 | 1500 | <180 | <2-5 mm 60-90% | 30-80 | 495 | 90 | 3100X1900X2300 | 7.5 |
