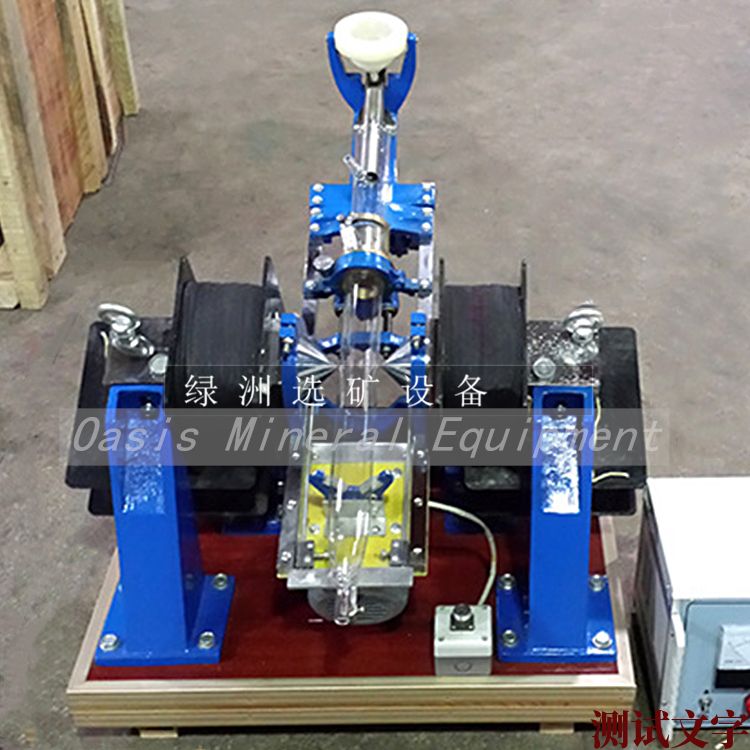

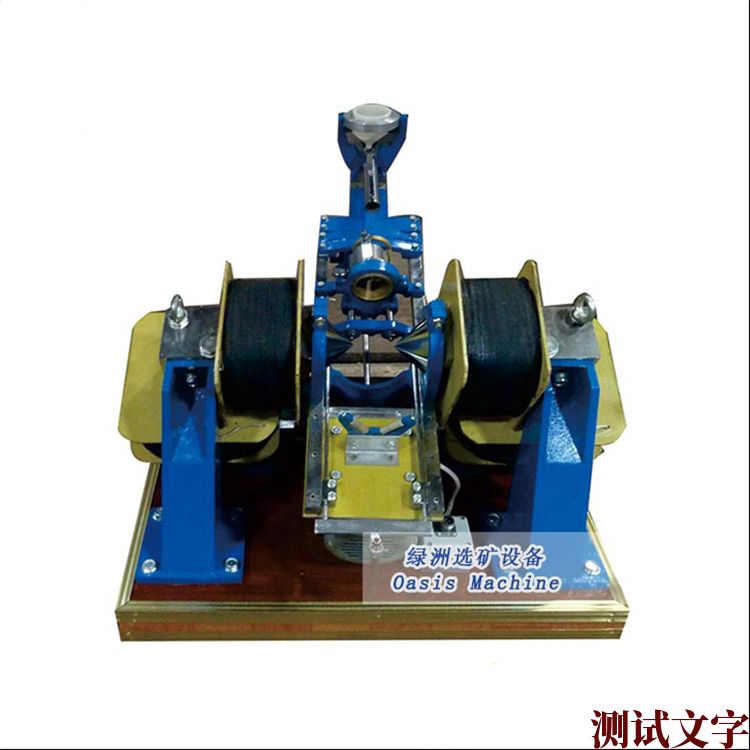

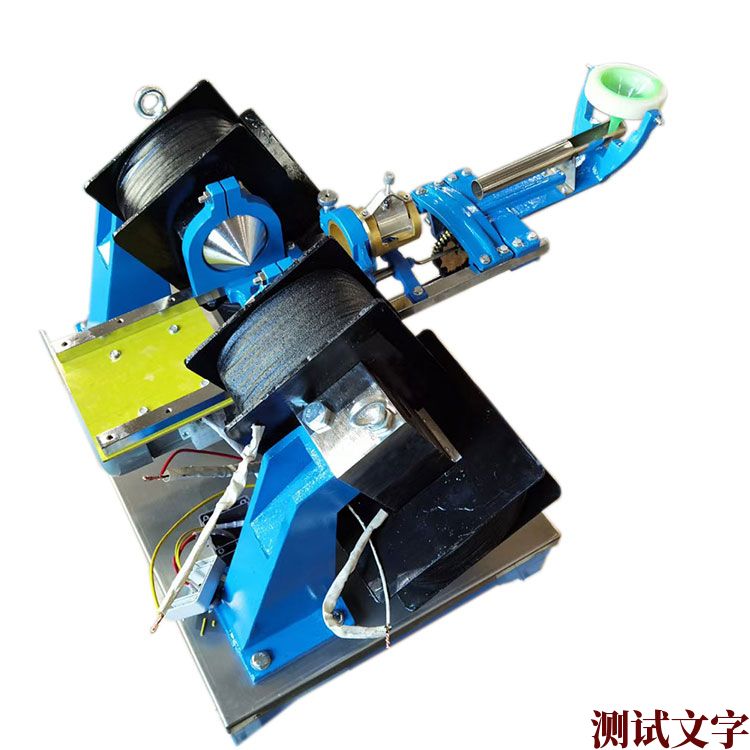

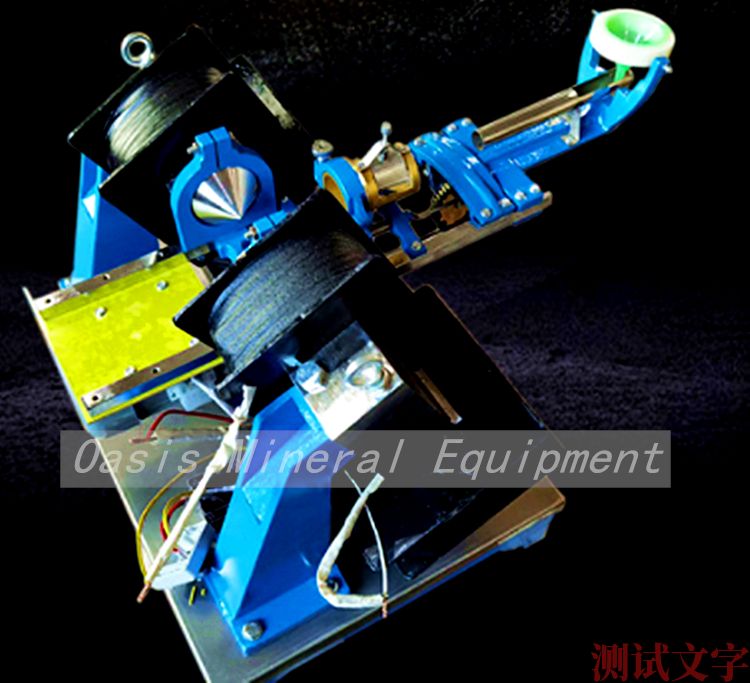

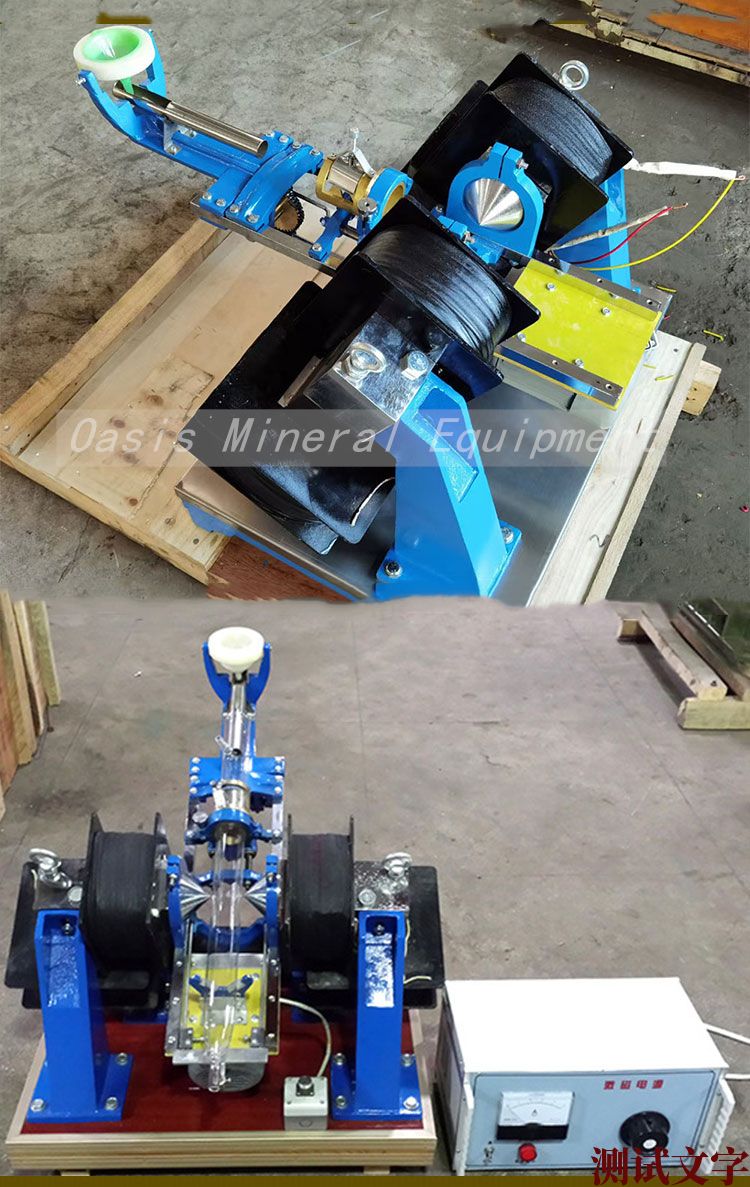

磁選管 Magnetic(Davis) Tube

     磁選管(戴維斯分析儀)用於金屬選礦實驗室,礦業工程實驗,中間實驗廠,它利用濕式方法對細粒磁性礦石進行磁選,隻需少量試樣即可獲得檢驗礦物含鐵量技術指標,磁選機體積小,操作簡單Magnetic tube(Davis tube)for metal mineral processing laboratory,mining engineering experiment,the middle experimental plant,which uses fine-grained wet method magnetic ore separator,only a small amount of sample can be tested technical indicators of mineral iron content.Separating small size,easy to operate.

Application, work principle and features:

1. Application: used in metal mineral separation laboratory, mining engineering experiment, and intermediate experiment factory

2. Work principle:

1) With a wet method to magnetically select fine-grained magnetic ore

   2) With a small amount of sample, the technical indicators of the iron content of the tested minerals can be obtained

3.  Features: small and easy to operate

技術參數/Specification-Oasis Equipment
水力旋流器/Hydro-Cyclone
Model	LZCGS50
Tube Diameter(mm）	50
Vibrating Freq(r/min)	70
Gap between 2 magnetic heads and head (mm)	52
Feed size(mm)	0.5
Intensity(GS)continuously variable	0-3000(200KA/m)non adjustable
Voltage (V）	50HZ 220
Exciting power(VA)	500
Supply equipment	exciting power supply 1set
Overall dimensions(mm)	1000/800/500
Weight(kg)	189
